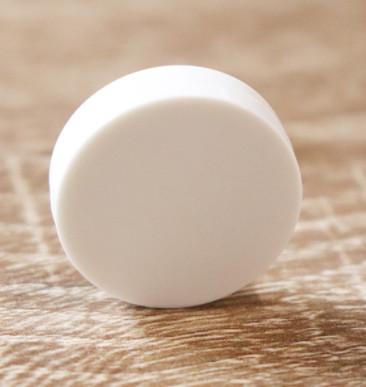

The STICKBeacon is a portable iBeacon tag with ultra low power ARM
chipset nRF52832 and leverage BLE 5.0 technology; it has a portable
case shape, accurate hardware and robust firmware . It is designed
for the commercial advertising and indoor
location-based service.
Feature:
1, Support Apple iBeacon format broadcast
2, Support Eddystone protocol and two kinds of protocol round
broadcast
3, Support power display and temperature display
4, High energy ER14250 for 5 years` lifetime
5, Special configuration APP provided
6, The battery can be replaced by a knob
7, Parameters can be customized before delivery
Application:
1, 2.4GHz Low power Bluetooth system
2, Offline promotion, precise advertising push
3, Personnel positioning in office, factory and other scenarios
4, Indoor positioning of large shopping malls, parking lots,
airports and other
large public places
5, Tourist attractions, museum online explanation
6, Sign in at work place, exhibition and other occasions
| Specifications Frequency of communication BLE 5.0 | |
| Rated operational voltage | 3.6V |
| Average current | 30uA (0dBm/500ms) |
| Quiescent current | ≤2uA |
| Peak current | 5mA |
| Security Support Password Change Parameters;Restart and unreachable
mode;Anti-malicious connection function | |
| Read range | 0~150m |
| Broadcast frequency | 100ms~10s, default 500ms |
| Broadcasting power | -20~+4 dBm, default 0dBm |
| Size | Diameter 51×22.2mm |
| Weight | 40G(inclduing battery) |
| Material | ABS |
| Lifetime | Above 5 years(0dBm/500ms) |
| Battery type | 2pcs ER14250 |
| Battery capacity | 2400mAH |
| Mounting way | Srew or adhesive |
| Operation temp | -30°C~+60°C |
| Support device | iOS 7.0 and above, Android 4.3 and above |
| UUID | FDA50693-A4E2-4FB1-AFCF-C6EB07647825/or customized |
| Major | 1616/customized |
| Minor | Random/customized |
| Measured power | -65dBm |
| Transmission power | 0dBm |
| Change Password | Support password confirmation change |
| Broadcasting Interval | 500ms |
| SofteReboot | Support |
| Battery service | Battery icon display;real-time detection;Full grid is 100% power |
|
|
