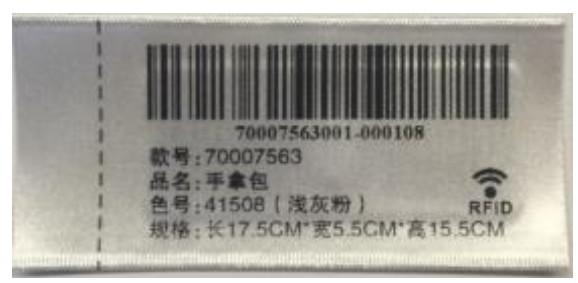

Retail garment RFID system passive Fabric woven polyester UHF care label , RFID fabric label FAB3065P, Pre-Printing

Care Label is mainkly used for anti-theft and data statistics in apparel and fashion industry. It has excellent reading and writing performance. The product can be stitched on clothing with printing or coding.

PRODUCT FEATURES

• Small size, can be sewn on clothing
• Stable read distance
• High consistency
• High cost performance

• Specifications
  Protocol	ISO/IEC 18000-6C & EPC global Class 1 Gen 2
  Chip	MR6/ 8/ 7
  Memory	MR6: EPC 96bits,USER 0bits,TID 48bits 8:EPC 128bits,USER 0bits,TID 96bits 7:EPC 128bits,USER 0bits,TID 96bits
  Application	Apparel
  Read range	Up to 6 meter by fixed reader; Up to 3 meter by handheld reader
  Frequency	860MHZ to 960MHZ(GB)
  Label Size	30*65mm
  Inlay Size	15*40mm
  Package	Piece by piece
  Material	Polyster Satin
  Storage temp	-20℃ to 60 ℃
  Operation temp	-20℃ to 60 ℃
  ESD	<=2KV





How to place an order?

1) Provide your specific requirements and artwork with format of PDF or AI;
2) Quotation;
3) Confirm details and place the order;
4) Our designer will make the bleed on your artwork or do a design according to your requirements;
5) Send you the confirmation draft and a Proforma Invoice;
6) Signed the confirmation draft and send it back, then make the payment;
7) Start mass production after confirmation and payment;
8) Production and Delivery, 7-15 working days ;

Hangzhou Linkwin Smart Technology Co.,Ltd is an RFID high-tech enterprise which integrates R&D, production and sales of RFID labels and tags.

As a pioneer in innovative RFID tag and label solutions and services, Linkwin serves customers around the world. Established RFID business in January 2014, it has grown out with professional R&D team,experienced production team and hardworking Sales team.

Linkwin's RFID labels and tags R&D team includes more than 10 experienced and well-educated professional technicians. The company closely cooperates with top Universities and Research institutes in China to develop proprietary RFID labels, tags and RFID reader antennas, for use in metal, liquid or other challenging surroundings.

Linkwin's products are widely used in the global retail, apparel, logistics, healthcare, manufacturing, library and asset management industries. The company has a complete RFID product portfolio with more than 100 kinds of labels and tags, including HF and UHF conventional and special labels and tags, as well as NFC labels and tags.
